  • Make Clear Stars and Hearts Ice with Silicone Cupcake Liners

    You can make clear ice cubes in a tray in a cooler by punching holes in the bottom of each cube compartment and setting the tray on a riser. This is described here. Most commercial clear ice cube trays work similarly.

    But cubes are not the only shape of clear ice you can make in this method. Using these cheap silicone cupcake liners from Amazon:

    61-Ucg06exL._AC_SL1500_

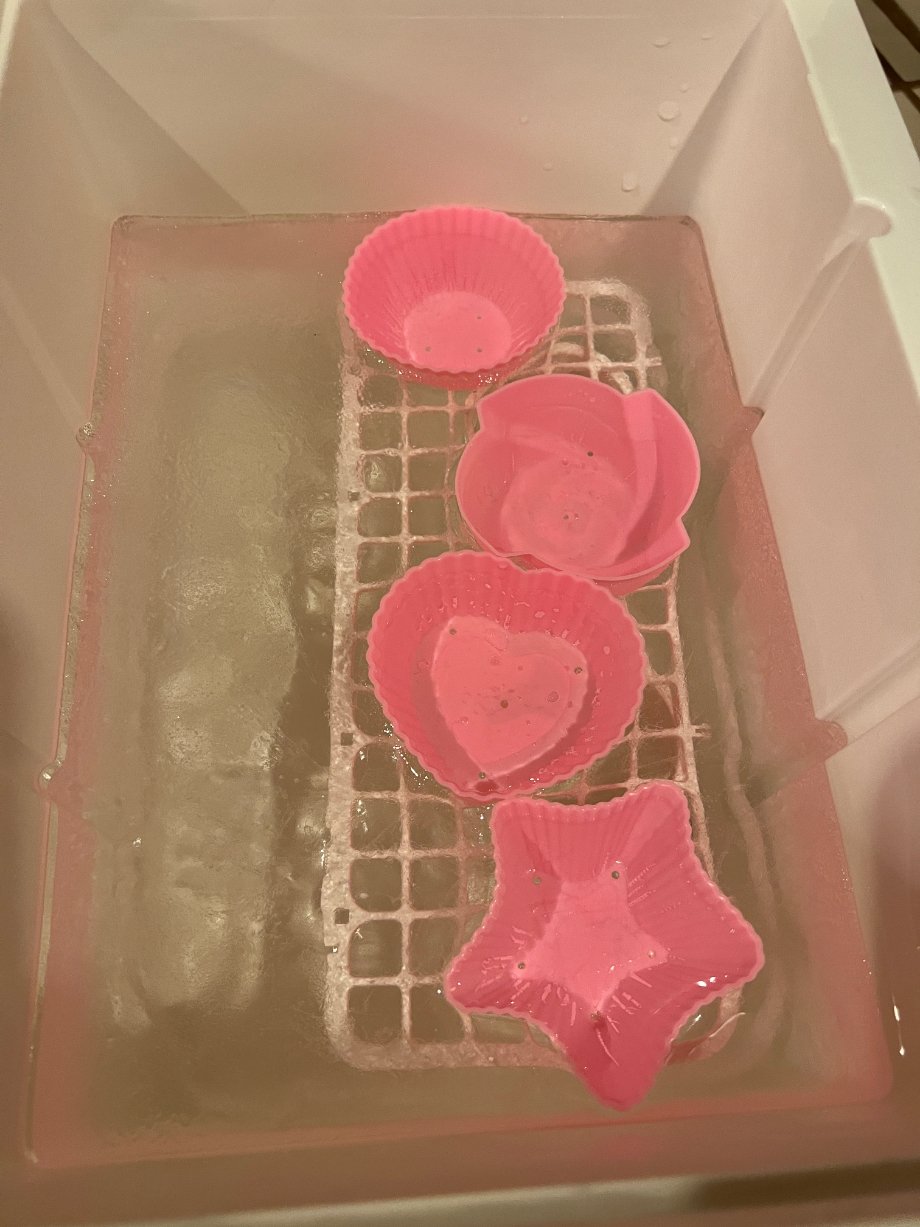

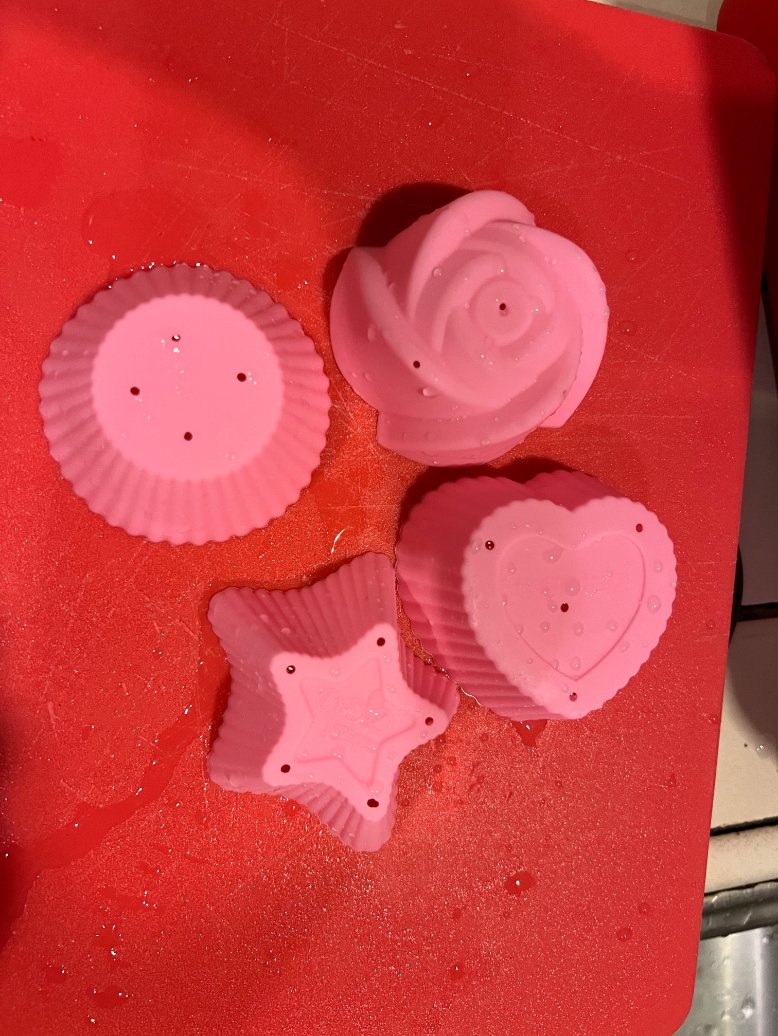

    I poke holes in them (using this hole punch) and set them on a riser in a cooler. I then filled the cooler with water up to the level of the top of the cupcake liners. I let them freeze for 24 hours, though I could have pulled them out sooner.

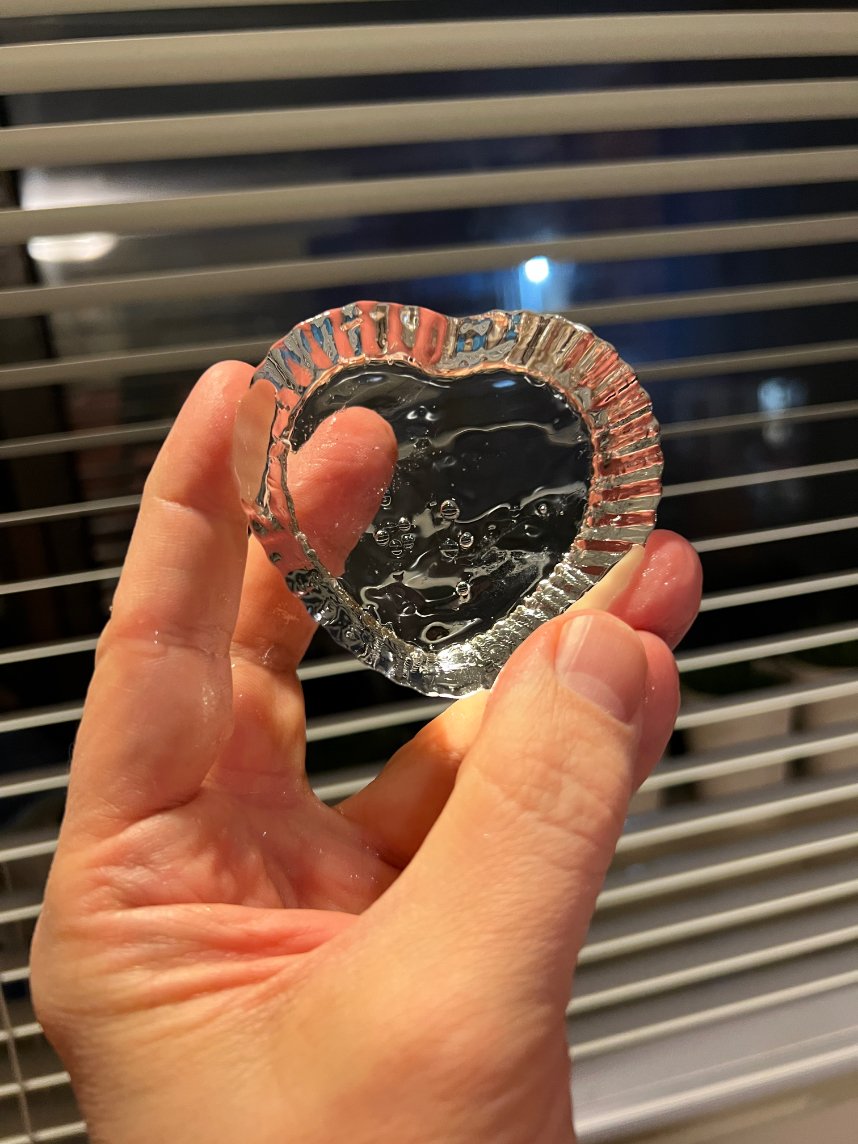

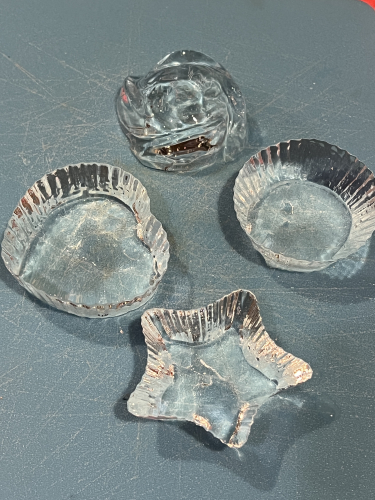

    Clear ice in silicone cupcake star heart shapes17
    Clear ice in silicone cupcake star heart shapes17

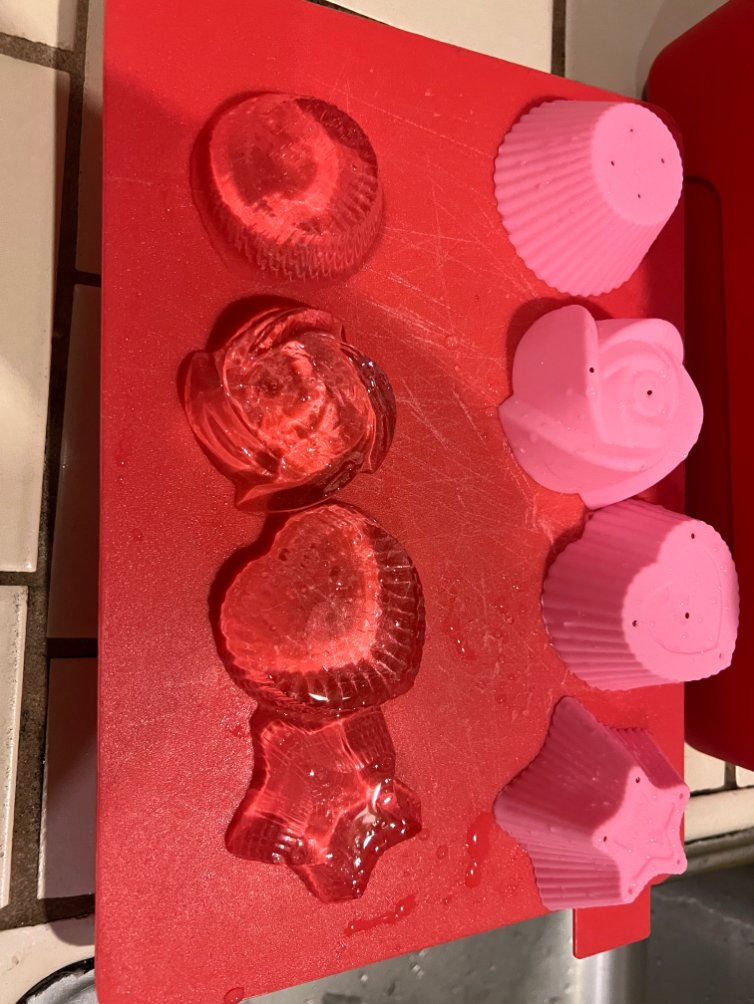

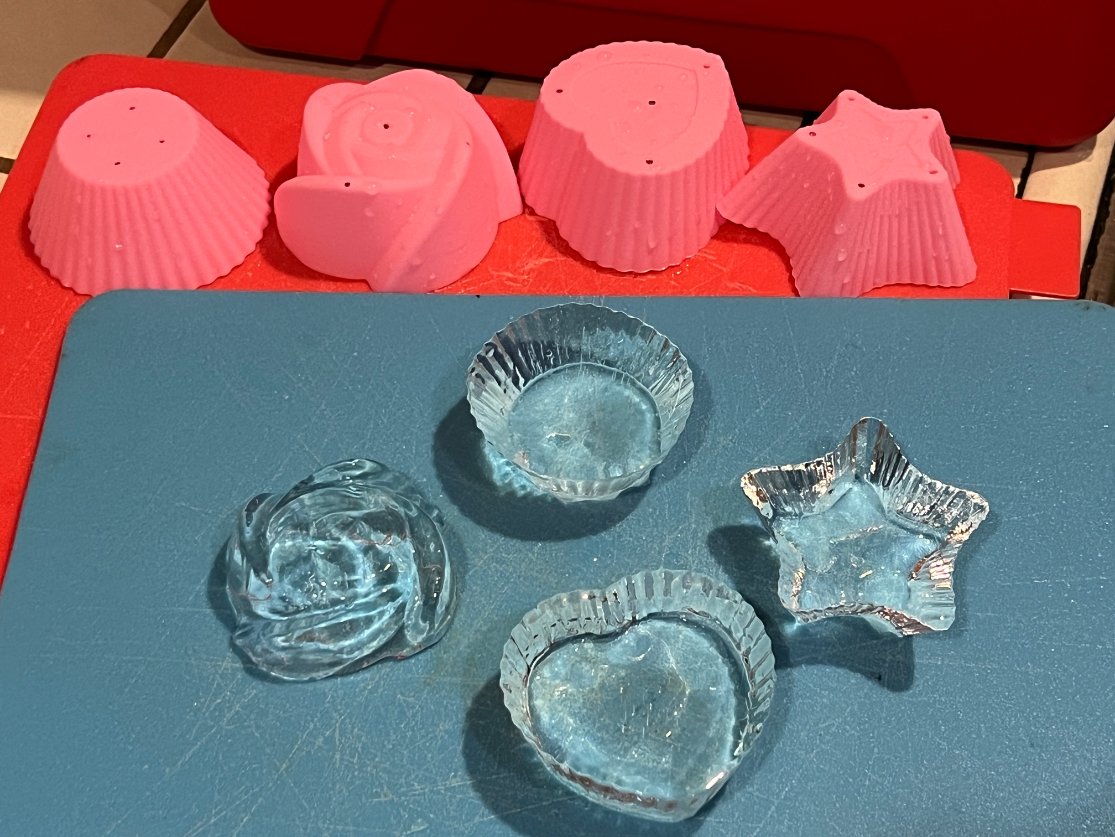

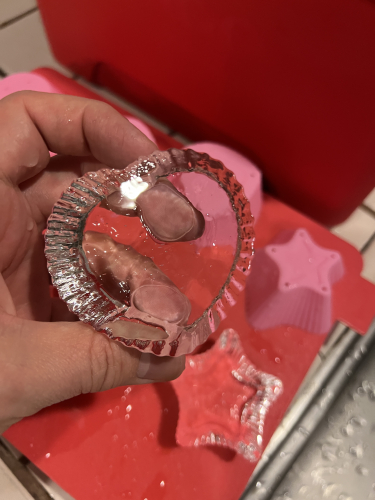

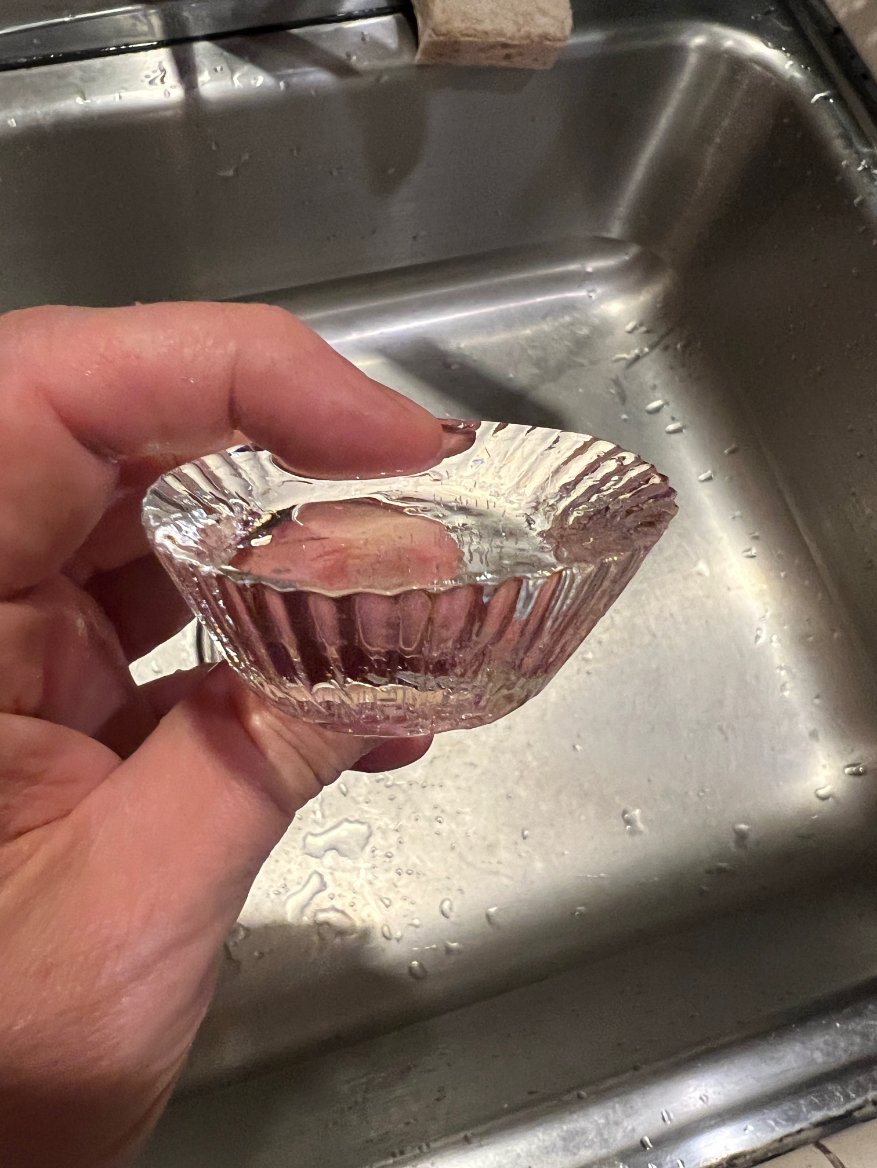

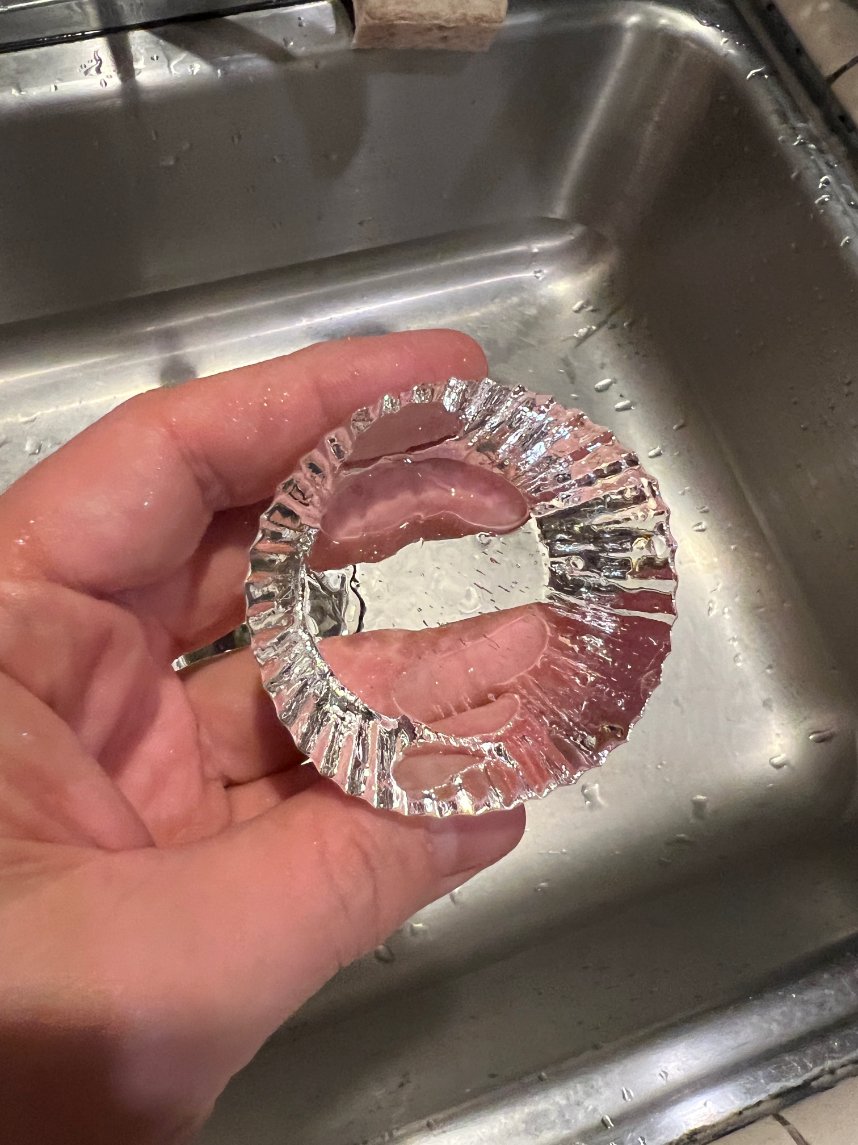

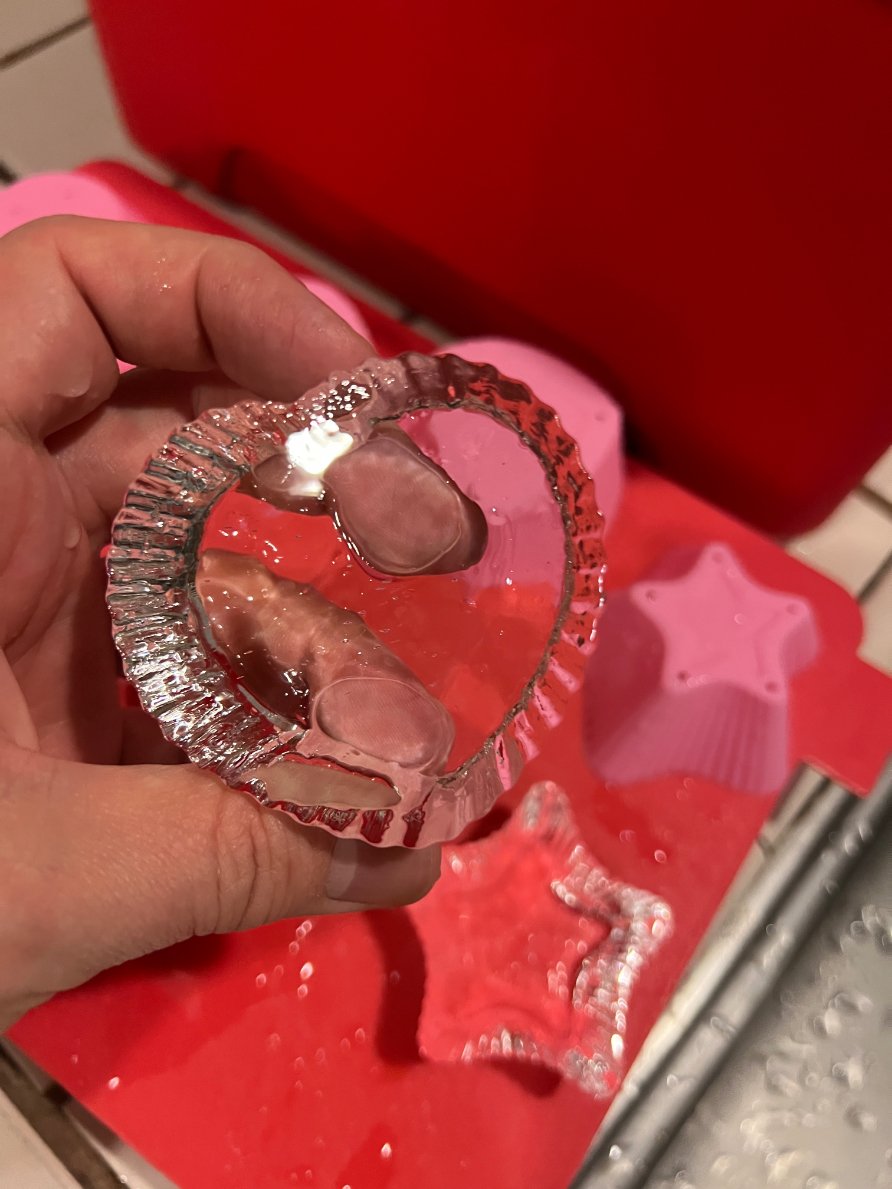

    The silicone cupcake liners pulled out of the ice surprisingly easily, and the ice slipped right out.



    Clear ice in silicone cupcake star heart shapes12


    Clear ice in silicone cupcake star heart shapes12
    Clear ice in silicone cupcake star heart shapes12
    Clear ice in silicone cupcake star heart shapes31
    Clear ice in silicone cupcake star heart shapes31
    Clear ice in silicone cupcake star heart shapes31
    Clear ice in silicone cupcake star heart shapes31
    Clear ice in silicone cupcake star heart shapes73
    Clear ice in silicone cupcake star heart shapes73
    Clear ice in silicone cupcake star heart shapes73
    Clear ice in silicone cupcake star heart shapes73
    Clear ice in silicone cupcake star heart shapes73

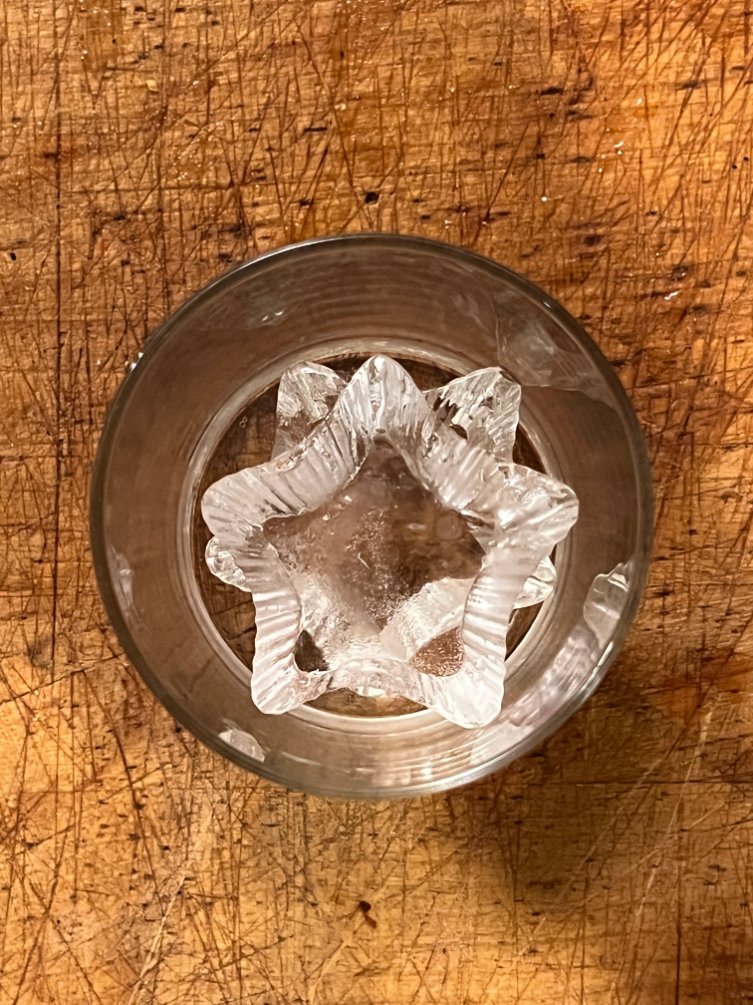

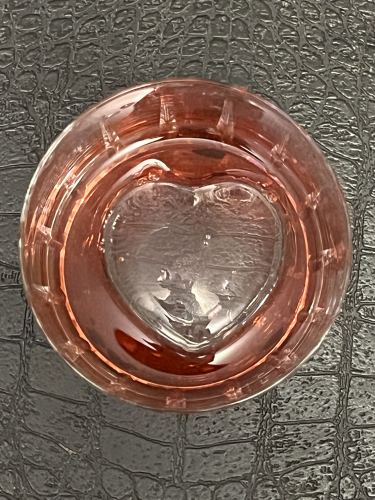

    They were hard to photograph with liquid in the glass, because they're so clear the ice disappeared. For the ones with liquid in them, I only have a little bit of liquid in the glass.

    I'd love to think of a way to best display them in cocktails. Perhaps tucked into crushed ice at the surface of a drink. Of course they'd also look great with colored ice, but then we wouldn't have had to poke holes in the cupcake liners in the first place!



  • Eyeballs Inside Ice Balls – Halloween Ice

    I did another stupid thing!

    I bought some bouncy eyeballs in the Halloween section of the drug store and put them inside the IceOlogy clear ice ball maker.

    The balls float inside the ice ball molds so when they freeze they're touching the outside of the ice ball- I'd prefer them to be fully enclosed in ice. Because the balls are not food safe I would not recommend serving these to customers in a bar setting, and because they touch the outside of the ice I'd not recommend serving them in alcohol, lest it degrade the plastic.

    Eyeballs in ice ballsIMG_6387
    Eyeballs in ice ballsIMG_6387
    Eyeballs in ice ballsIMG_6387

    Eyeballs in ice ballsIMG_6397
    Eyeballs in ice ballsIMG_6397

    But anyway, another fun ice project for home. If you liked this, you might also enjoy these Spiders and other Insect Ice Balls I did last year.


    For an index of all sorts of exciting clear ice projects, visit the Index of Ice Experiments!



  • Spiders and Insect Ice Balls for Halloween

    I'm a sucker for an ice gimmick, so with Halloween approaching I made some clear ice balls with insects from the dollar store frozen inside.

    As usual, I used the method revealed here on Alcademics, using a Thermos Funtainer and 2.5 inch ice ball molds upside-down. Read about how to do that here

    The plastic insects I bought from the dollar store, made in China, so they're most definitely not approved for food use. I'll serve them to myself but don't recommend non-food-safe products at a bar. (Given that I'm freezing rather than heating them, a thorough wash is good enough for me at home.)

    So, here they are:

    IMG_2402

    IMG_2308

    A fly in a clear ice ball.

    IMG_2369

    IMG_2350
    IMG_2350
    IMG_2350

  • More Ice Ball Shenanigans

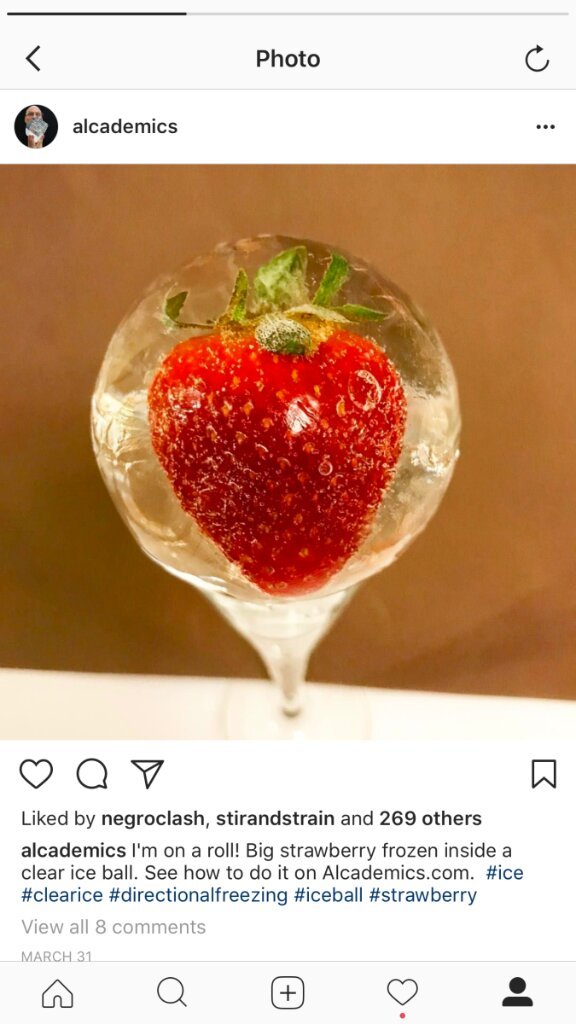

    If you're not following alcademics on Instagram… well you really should be. I've been having some fun over there freezing stuff into ice balls. I'm using the same technique you've seen here on Alcademics before – a thermos and an upside-down ice ball mold.

    Lately I did a couple fun ones with money, which I'd never serve to a real person because money is filthy.



    IMG_0568
    IMG_0568

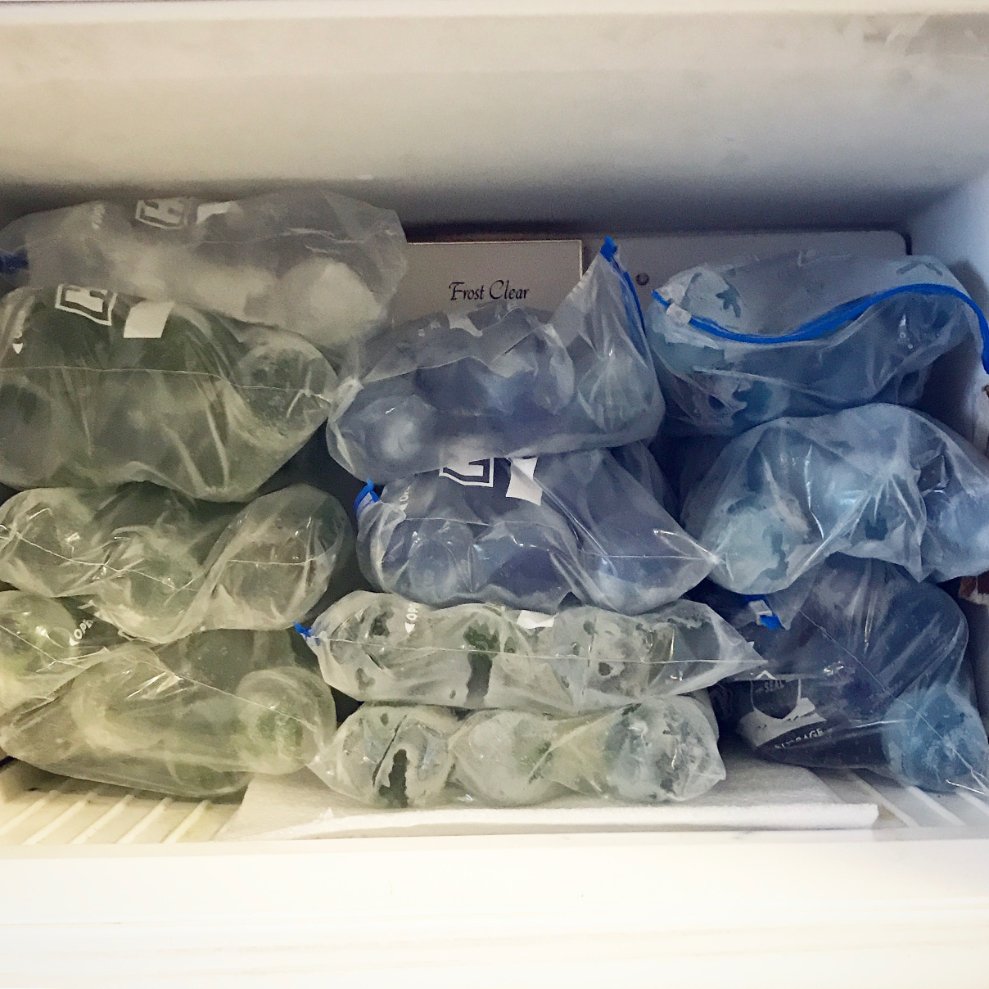

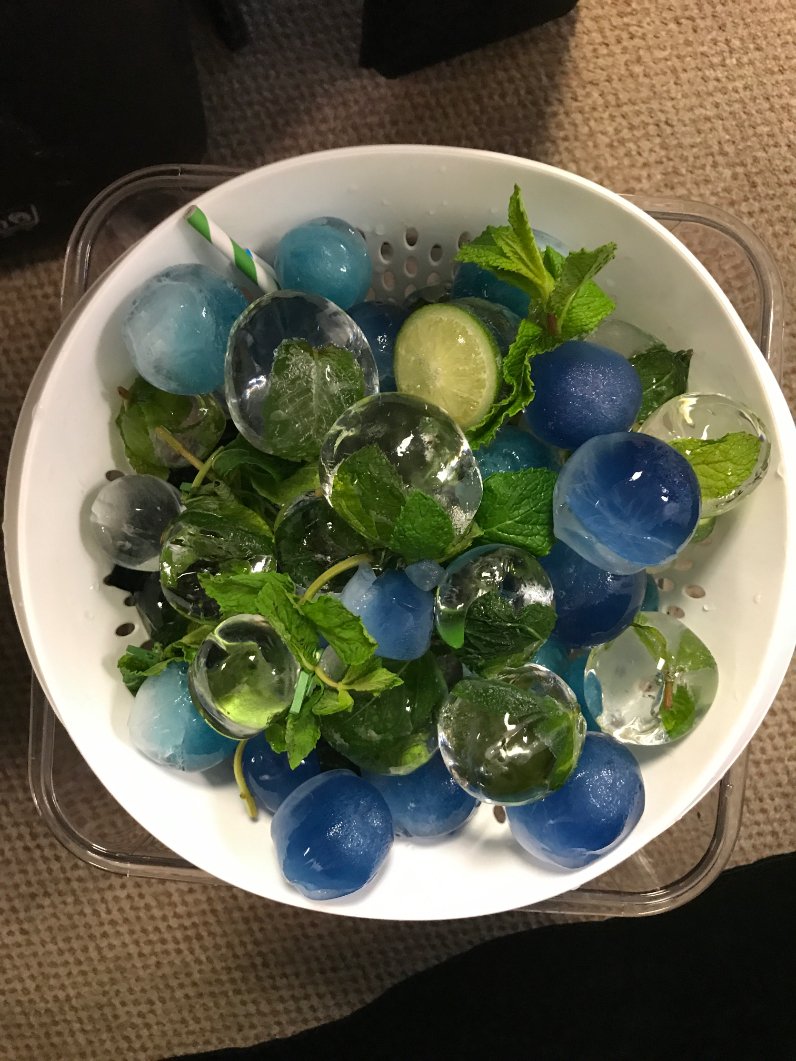

    I did a few with jalapenos for one event, and some with mint for another event. (Also some blue ones for it.)

    IMG_0587
    IMG_0587
    IMG_0587
    IMG_0587



    And for gay pride, I made some ones with rainbow flags. I printed out and laminated some rainbow flags, and then froze those inside the ice spheres.

    IMG_0608
    IMG_0608

    If you're looking for more amazing ice projects, check out the Index of Ice Experiments.



    Any suggestions on other things to freeze inside clear ice balls?







  • Directional Freezing, as a Patent Law Exam Question

    PatentAs readers of this site know, I figured out "directional freezing" – the process of making clear ice by controlling the direction in which water freezes – in 2009 and first posted it here on Alcademics

    I had always assumed that I couldn't patent the process because it's something that happens naturally (like how ponds and lakes freeze), but perhaps could have patented a device for producing clear ice cubes had I been entrepreneurial enough. (As you know, many such devices now exist.)

    Well, this question became an exam question from Jason Rantanen, Professor at the University of Iowa College of Law.

    On this post on the website Patentlyo.com, he talked about the test as he proposed a hypothetical:

    Camper English was the first person to discover that clear ice could be produced in a home freezer by freezing the ice in a directional manner.  English published these findings on a weblog on December 28, 2009, a copy of which you were provided in Appendix A.  English immediately filed a patent application that contained the following claim.

    I claim:

    1. A method of producing ice comprising freezing water in a directional manner in a home freezer.

    Analyze the patentability of the claim under current patent eligible subject matter law.



    The rest of the test question involved the Wintersmith's clear ice maker. Keep reading the post for more info an an image from the patent application. It's pretty interesting.

    Rantanen didn't provide the answer on the Patentlyo website, but he did give me permission to post a rough technical explanation of the answer, with the understanding that the below does not constitute legal advice

    The full answer involves application of an analytical framework that the U.S. Supreme Court articulated a few years ago in a case called Alice v. CLS Bank.  Basically, you first ask whether the patent claim is "directed to" an unpatentable concept like a law of nature or physical phenomena.  If it is, you then ask whether the patent claim adds an "inventive concept": basically, something that transforms the claim into something more than just a claim to natural law itself.  A formalistic addition isn't enough: saying "I claim the process of risk-hedging, done on a computer" or limiting it to a particular technological field, such as ice-making, isn't enough.

    In this case, claiming the concept of directional freezing would fail the eligible subject matter requirement since it's a natural law or physical phenomena.  Even limiting it to being done in a home freezer is very unlikely to be enough of an inventive concept.  However, claiming a specific process for making clear ice could be sufficient.  For example, a claim to "a method of producing clear ice by placing water in vessel that is insulated on every side except the top and placing that ice into a home freezer" would likely be enough to satisfy the patent eligible subject matter requirement.  There's a neat recent case that my students would have been aware of called Rapid Litigation Management v. CellzDirect that involved a process of freezing and unfreezing liver cells.  The Federal Circuit (the Federal appeals course that hears appeals in patent cases) held that that particular method did constitute patent eligible subject matter.

    The Wintersmith device on the other hand strikes me as a pretty clear application of natural principles.  I doubt anyone would be able to mount a serious patent eligible subject matter challenge to that patent.

    All that said, there's still the issue of whether or not the invention is new.  If someone else described the same process then the process wouldn't be patentable.  But newness is a different issue that's governed by a different set of rules.

    Got all that? Sure you do. Me too :)

    In any case it's awesome that after all these years I got an answer for a lingering question about The Blog Post That Launched A Hundred Ice Cube Trays.





  • Making Clear Ice with the Clearly Frozen Ice Cube Tray

    While I'm not going to get in the habit of testing out every clear ice cube maker on the market, I decided to try out the Clearly Frozen tray because they sent me one.

    This ice cube tray uses directional freezing, the process to make clear ice first described here on Alcademics back in 2009. This particular system is pretty much the same as in this blog post about poking holes in silicone ice cube trays and using directional freezing to ensure the part inside the tray is clear. The difference is that in the Clearly Frozen device, the shape of the 'cooler' is custom made to fit the ice cube tray and retaining tray.

    The device is just three parts: a 10-cube silicone ice cube tray (makes 10 2-inch cubes at a time), a plastic retaining tray to hold the cloudy ice beneath the tray, and the foam insulated box that enforces directional freezing. You put it together, fill it with water, and leave it to freeze. My timing was perfect at a little over 12 hours of freezing – there was still plenty of unfrozen water in the plastic tray so it was easy to separate.



    IMG_9136

    IMG_9077
    IMG_9077
    IMG_9077
    IMG_9077 IMG_9119
    IMG_9119
    IMG_9119





    Pros:

    • Makes more cubes than most clear ice cube trays on the market – ten 2" cubes
    • More space-efficient relatively than others – it takes up a bunch of space, but you get more ice out of it than with other clear ice makers
    • Costs less than others- $25 including shipping

    Cons:

    • I have no complaints for my first attempt, but I do have some doubts about its long-term durability. The interior clear tray is quite thin and I could see it cracking. 2019 update: They have updated the interior tray with a much thicker and more durable plastic, so it seems this tray will last a long time.



    Personally I will probably continue to to make my ice one big Igloo cooler at a time, because I enjoy the process of breaking up an ice block and don't care that much about having super-square ice cubes. But of the commercial products I've tried, this one has a low price and some nice features





  • Ice Tips in Southwest Airlines Magazine

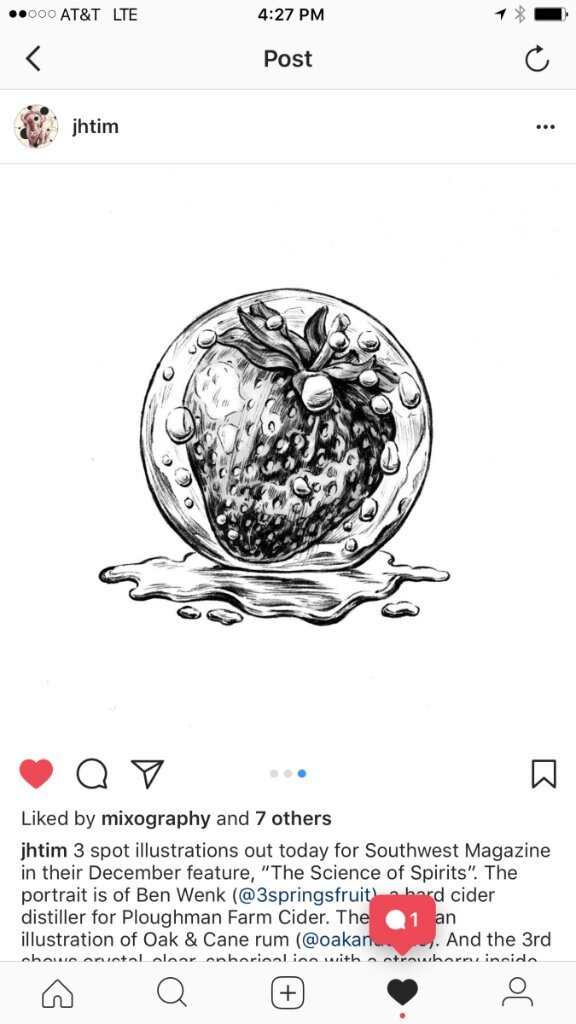

    IMG_8963If you're traveling in December on Southwest, you may notice an illustration of an ice ball with a strawberry in it. That's based on a real strawberry inside a real ice ball, that you may have seen here on Alcademics.



    IMG_8964
    IMG_8964























    I don't see the story online, so I'll post it below.

    IMG_7168 (1)

    For more information on how to make awesome ice balls with stuff inside them, check out this post and this post, and of course the Index of Ice Experiments here on Alcademics.

    Thanks to writer Michael Cook for writing the story and thanks to my friends who spotted it in magazine and snapped pictures for me!





  • Boiled Versus Rested Water Clarity with Directional Freezing: A Comparison

    The main water factors that affect ice clarity in an ideal environment:

    • Gasses in water
    • Minerals/other impurities in water

    Factors of the freezing environment that also impact clarity:

    • Rate of freezing (warmer temperatures better)
    • Shape of container, which impacts whether the last part to freeze will crack the ice (as it does in a typical ice cube tray)
    • Jostling/moving of the cooler in a home directional freezing system (cooler with the top off) as this causes bubbles to form earlier

    I've been studying each of these factors carefully, as I may be contributing a section on the science of ice to the Oxford Companion to Cocktails and Spirits (which hasn't been edited/approved yet, and isn't due out for a while so don't get too excited).

    One factor that has always confounded me is the gasses in water. We know from observation that gas in water becomes trapped in ice in the form of bubbles, whether that's in the center of an ice cube or the bottom of the block using a cooler in the freezer.

    Most kitchen sinks have aerators on them that add more air to water, so that's a factor. But there are also lots of theories (boiling water, freezing then melting then refreezing) that are meant to minimize the air in water.

    My issue has always been: If trapped air in water is water's natural state, then if you boil the water to eliminate that air, wouldn't air just be re-absorbed into the water when it returns to room temperature?

    Dave Arnold in Liquid Intelligence asserts that you should boil the water, put it in your cooler, let it cool a bit, and then put it in the freezer. I was doubtful that this actually helps, but Dave Arnold is usually right, so I finally decided to test this.

    Click on the image below to expand it greatly.



    Boiled vs unboiled water ice blocks

    Experiment

    For the first block of ice, I boiled tap water briefly, put it into the cooler, let it cool down for several hours, then froze it on the highest (warmest) setting in my home freezer.

    For the second block of ice, I used tap water that I poured into the cooler, let it set out overnight, and froze it the same way. The theory of letting it sit overnight was that the air bubbles introduced via the sink aerator and pouring water from one vessel to another would fizz off naturally.

    For the third block of ice, I put tap water through a Brita filter, and was generally extra careful to not introduce air by splashy pouring. (I was hoping the filtering and light handling would further reduce aeration.)

    Results: The fully cloudy, opaque (unusable) section of of the block is slightly reduced in the boiled water vs. unboiled. If I were making ice in an industrial capacity using coolers, it probably wouldn't be worth the time/effort/heat to boil the water to produce rather than getting it done 5 hours earlier and having a half an inch less usable ice.

    However, the amount of thin streams of bubbles in the clear part, which look okay but not perfect when cut into cubes (though a bit more dramatic in pictures), seems significantly reduced in the boiled water block.

    Conclusion: Boiling water before freezing in the directional freezing system does appear to improve the clarity of ice, in particular by eliminating bubble streams in the section of ice just before the solidly cloudy final bit.

    It does not improve ice clarity on its own more than directional freezing does in the first place, and therefore won't replace directional freezing (and boiling water was the first experiment I did in trying to make clear ice eight years ago), however it can make directionally-frozen ice better.

    It seems the natural aeration of water poured from the sink is reduced, though certainly not eliminated, by boiling the water before freezing it.

    A future experiment (not sure if I'll actually do it) would be to let the boiled water cool down to the same temperature as the unboiled water before freezing, though I doubt this would have any impact.

    How will I change the way I make ice at home? I will not. I try to use filtered water, frozen in a cooler, removed after 2-3 days so the cloudy bottom part hasn't formed at all.



  • New Business Models for Large Format Cocktail Ice Providers

    Large format cocktail ice providers have been around for a while, but now big cube/sphere/spear providers are branching out into new shapes, sizes, making machines, and pushing into retail.

    In a story for SevenFifty Daily, based in part on my talk at Tales of the Cocktail, I wrote about what several companies are doing to bring more larger clear ice to more people.



    Big ice copy

  • Make Amazing Frozen Liquor Bottle Displays using Directional Freezing

    Using just a cooler, a makeshift stand, and a bottle you can make cool-looking displays for home, parties, or the bar.

    If you're just getting started into ice nerditry, you'll want to check out the Index of Ice Experiments, where you can get a definition of Directional Freezing and see other fun projects.



    IMG_5943

    I previously shared how to do this on this post.

    In short: inside an insulated cooler, lay a bottle atop a small riser of some sort (I used a plastic box lid) so that the bottle is raised up a few inches off the bottom.



    Photo Apr 22  1 55 57 PM

    Fill the cooler with water (tap water is fine) so that it covers the bottle. Leave the top off the cooler and let it freeze. In my home freezer, that takes 3-4 days. Thanks to Directional Freezing, the top part of the cooler (so the front part of the bottle) will be clear, while the bottom (back of the bottle) will have all the cloudiness in it.

    You can see from this back view that the plastic riser is still stuck in the back. From the side view, you can see that thanks to directional freezing the top part of the block is super clear (so you can see the front of the bottle), while the back is cloudy. It turns out the cloudy part actually makes a nice backdrop.



    IMG_5850
    IMG_5850

    Remove it from the cooler than your display is ready to go. I've done this at parties (putting some LED candles in the ice beneath the standing block) and it was a huge hit.

    IMG_6071
    IMG_6071




    Check out all the ice experiments on Alcademics at this link.
