Using Salt Walter as an Insulator to Make Clear Ice

This blog post is a continuation of this experiment.

In this experiment, I wanted to test out another way to insulate an ice cube tray to make clear ice. Inspired by a comment from another blog entry by a reader named Gael, I decided to try salt water as an insulator rather than just plain water as in the last experiment. If it worked, this would be a way to make clear ice at home without taking up too much freezer space.

I took a small food container and put it into a slightly larger one. The smaller container held only water. The outer container held water with table salt. The theory is that the salt water would not freeze, so it would act as an insulator for the ice, and control the direction of freezing so that it would only freeze from the top-down (as with the cooler method).

I didn't use a ton of salt. As you can see, the outer container's water did freeze lightly,though it was soft. The bottom did not completely freeze, as you can sort of see here.

The inner container did seem to freeze toward the bottom.

In better-insulated containers, the cloudy part is only on the bottom of the container. Here, it is concentrated but raised slightly above the bottom of the container.

In this case the inner container sat directly on the bottom of the outer container, so it wasn't greatly insulated on the bottom. My theory is that this is why the cloudy part of the ice is raised above the bottom.

To improve this experiment, I would put raise the inner container off the bottom of the outer container, and probably use a greater amount of salt in the salt water.

As the outer container here is only slightly larger than the inner container, this system is more space-efficient than the Igloo cooler for many people without large freezers.

There's more work to do on this…

An index of all of the ice experiments on Alcademics can be found here.

October 26, 2010
Making Clear Ice Without a Cooler
In a set of experiments, I showed that you can make clear ice by controling the direction of freezing. The container I've been using for this is an Igloo cooler. When using it, the ice freezes from the top-down and all the cloudiness in the ice forms at the bottom of the container rather than in the middle of the block.

I wanted to show that you can do this without a cooler as long as you have some sort of insultation that accomplishes the same thing as the cooler. In this case, I chose a bigger pool of water as an insulator.

As a control I froze a plastic take-out container of water in the freezer.

As usual, it is cloudy over a large area, mostly in the center. This is because the water freezes from the outside-in. The last part of the ice to freeze contains air and any impurities, and is cloudy.

So then I took the same container and put it into a larger container. The smaller container sits on cubes to keep it off the bottom of the larger container.

Both containers were filled with water to about the same level. The purpose of this is to use the outer container of water as an insulator. The water inside the smaller container would then freeze only from the top-down instead of outside-in, because the water surrounding it would freeze later (because it is so big).

The results show that this worked- the cloudy part of the ice was the last part to freeze at the bottom of the container.

What this means:
- Directional freezing works as long as there is an insulated jacket around the container. The ice freezes only from the top-down, pushing the cloudy part to the bottom.
- This property could be exploited to make an ice cube tray that makes cloudy-on-the-bottom ice. Picture, for example, an ice cube tray that was insulated with a jacket on the sides and bottom.
- So now I can do more experiments to make an insultated jacket that is practical.
An index of all of the ice experiments on Alcademics can be found here.
October 22, 2010
A Homemade Giant, Crystal Clear Ice Cube Tray
As you're probably aware, I've been dabbling in experiments making clear ice at home. [update: An organized index of ice experiments on Alcademics can be found here.] The way I've found that works best is to freeze ice in an Igloo cooler with the top off. (Please read the post before you tell me to boil the water in the comments- it doesn't work.)

This is now how I make all my ice at home- I haven't used trays in months.

Now I am working on ways to best carve ice and also trying to create an ice cube tray that will work in this directional freezing system. I found a method that works that I need to perfect.

Here's what I've done.

I went down to The Container Store and purchased these plastic gift boxes. They're 2 inches by 2 inches wide (4.5 centimeters) and around 5 inches tall (11.5 cm) with the tops off.

These I put in my Igloo cooler. I've done it with the open top of the container facing up, and also facing down. Facing down works better, actually, because the air in the rectangles gets pushed out the bottom. Facing up, you get a 1cm cloudy patch at the top of the cubes. No big whoop.

Then I fill the cooler with water and freeze it. It comes out as a block of ice with the cubes stuck in it.

These separate surprisingly easily from the block.

Also surprisingly easy is how the ice pops out of these plastic containers. I just leave them upside-down for a couple minutes and the ice cubes slice right out.

As you can see in the above picture, there is a little bit of cloudiness when the trays are left with the open part facing up. I repeated this experiment with the open part facing down and there was less cloudiness. Either way, there isn't much to worry about as it can be cut off when cutting these big long cubes down to 2 inch by 2 inch by 2 inch ones.

Conclusions:
- These ice cubes are fricking awesome.
- I need to try it with cutting off the bottom of the containers so that they're a rectangular tube rather than a box.
- I think this is actually scalable to make an ice cube tray with some tweaking.
- Hooray!
An index of ice experiments on Alcademics can be found here.
August 27, 2010
Curing Olives at Home, Part II

This post is a continuation of this one on how to brine olives at home.

My olives went from this:

To this:

To see the process, keep reading by selecting the link below.

(more…)

January 28, 2010
Brining Olives at Home

For the past couple years I've been wanting to try curing my own olives after reading about it on a food blogger's website. Then when Karen Solomon's awesome book Jam It, Pickle It, Cure It
came out I had instructions.

I carefully searched the news for ripe olive time, and noticed that the Sonoma Valley Olive Festival runs in December through February. So I planned to hunt for olives in December at the farmer's markets.

But it turns out there was a problem with that logic. Smartly they throw an olive festival after all the olives have ripened and had weeks or months to cure in brine solution. So when I started looking around at farmer's markets in December the olives were already all gone. Curses!

But wait!

(more…)

January 8, 2010
Is Faster Frozen Ice Less Cloudy than Slower Frozen Ice?

In the last installment of my ongoing adventures making clear ice at home in the freezer, I found that using a hard-sided Igloo cooler works pretty well to create large, mostly-clear blocks.

I was curious to see if faster frozen blocks (with the freezer turned to its maximum cold setting) would come out more or less cloudy/clear than blocks frozen at the minimum cold setting.

Of course, my freezer isn't exactly high-tech. According to my novelty jumping bass fish thermometer I picked up in Finland (thanks for the trip, Finlandia!), my freezer only ranges from -3.2 to 2.2 degrees Fahrenheit.

Anyway, as you can see below, there wasn't much difference at all. Here's the block set on the warmest freezer setting (slowest to freeze):

And here at the coldest setting, which froze faster:

My finger (I should be hand model, right?) indicates where I'd cut the block to get rid of the too-cloudy ice. One was 12 cm and the other 12.5. At that difference, you may as well turn the thing all the way up and have your ice sooner.

More icesperiments to come!

An index of all of the ice experiments on Alcademics can be found here.

January 5, 2010
Fun with Sugarcane

Sugarcane grows in California, so it's not uncommon to see short stalks of it for sale at farmer's markets and in Latin grocery stores. I was at one of these farmer's markets recently looking for un-cured olives that I didn't find, so I picked up a three-foot long sugar cane segment for two bucks.

Sugarcane is a type of grass that was transported to the New World by Columbus on his second journey. Once the stalks are cut, the sweet juice contained within the blade begins to oxidize- sort of like how an apple turns brown as soon as you cut it- which is why we don't see sugar cane juice for sale in bottles. So when sugar cane is harvested it is transported to the factory for processing immediately. I have no idea how old the stalk I bought was.

Sugar cane juice is directly fermented and distilled to make rhum agricole (from French islands like Martinique) and cachaca (from Brazil), or it is processed to make sugar. The byproduct of sugar production is molasses, which can be fermented and distilled to make all other rum.

Seeing as how I don't have a still at home (yet), I just wanted to play with the sugar cane juice. I found the stalk to be far heavier than I expected, but as it's mostly liquid I shouldn't have been surprised. Sugarcane is very fibrous, which makes it hard to cut and squeeze out the juice. Sugar cane refineries use huge roller mills that squish the sugar cane stalks and shred the fibers.

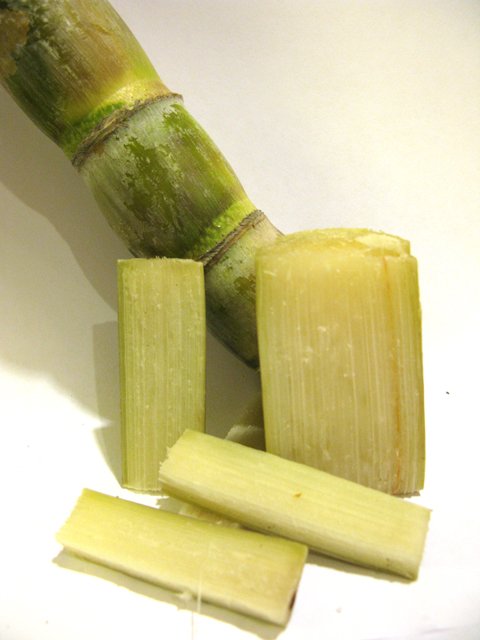

I cut a section of stalk and sucked on one of the pieces. I expected it to taste like sweetened water, but that wasn't at all the case- sugar cane juice has a bright, delicious raw vanilla flavor. (I've identified this as "Mexican vanilla" and "Lik-M-Aid/Fun Dip stick vanilla'" in tasting notes but maybe "sugar cane vanilla" is a better descriptor.) I haven't had the pleasure of visiting Brazil where they crush sugar cane to make juices on the beach (yet), but I completely get how refreshing this juice can be now.

Having sucked the juice out of pieces of sugar cane, I wanted to see how hard it would be to extract the juice from sugarcane at home. It was hard.

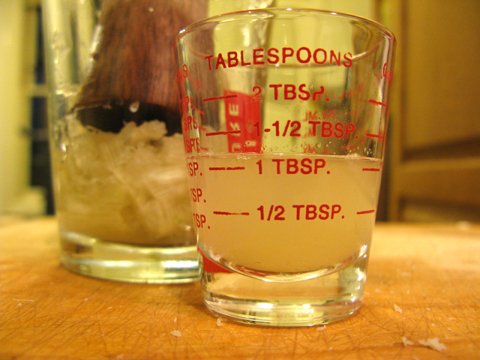

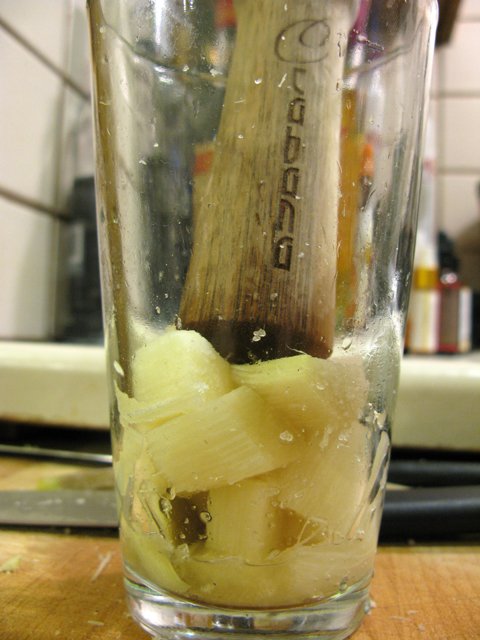

You certainly can't just wring it out. I cut the sugar cane into small chunks and tried muddling. I couldn't muddle more than one or two tiny pieces at once, so this was a slow process that produced very little juice.

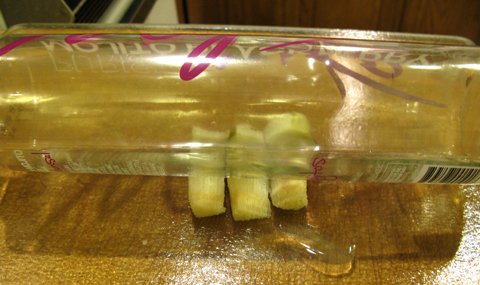

Then I tried using a rolling pin (in reality, an empty bottle of Purista Mojito Mix, which is surprisingly delicious) to roll over longer pieces of sugarcane and squish out the juice that way. It worked a little.

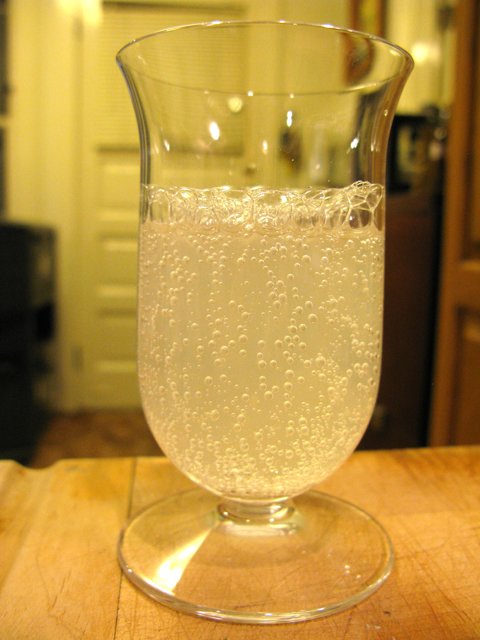

I poured the juice into a glass with soda water, and found it to be far less tasty than the juice on its own. Oh well.

So anyway, now that I've determined that sugarcane is really hard to get any juice out of, I need to figure out other ways to extract the liquid (Anyone know where I can buy an affordable sugar cane press?) or other uses for raw sugarcane. Since they sell it in stores around here, people must use it for something…

December 30, 2009
Does Distilled Water Freeze Clearer than Tap Water?

In my last set of icesperiments, I froze, melted, and refroze (tap) water to see if it became clearer on successive refreezings. It did not.

This time I compared tap water with distilled water to see if one would freeze more clearly than the other. I froze it, then melted and refroze it four more times. Though neither froze super clear, there were differences:

The tap water seems to freeze either clear or not clear, where the distilled water freezes in more of a bubble starburst. But in the end I'd say there's not enough of a difference to matter.

After the break, a closeup of the distilled vs. tap ice.

The icesperiments shall continue!

An index of ice experiments on Alcademics can be found here.

(more…)

August 28, 2009
Does Refreezing Ice Make it Clearer?

I am trying a series of experiments to find the best and most practical way to make clear ice in my home freezer. Future experiments include distilled vs. tap water, boiled vs. not boiled, hot vs. cold water, different shapes of containers, etc.

For this experiment, I started with plain tap water. I then froze it, took a picture, let it thaw back into liquid, and repeated the process.

The test was to see if freezing and refreezing tap water would make it become clearer on successive freezings (due to the release of oxygen trapped in the ice) each time.

So did it become clearer? The short answer is No. The long and visual answer is below.

(more…)
